IXGA20N250HV Datasheet, Igbt, IXYS

IXGA20N250HV Features

• Igbt
• International Standard Package
• High Voltage Package
• Electrically Isolated Tab
• High Peak Current Capability
• Low Saturation Voltage

PDF File Details

Part number:

IXGA20N250HV

Manufacturer:

IXYS

File Size:

340.91kb

Download:

📄 Datasheet

Description:

High voltage igbt.

IXGA20N250HV Application

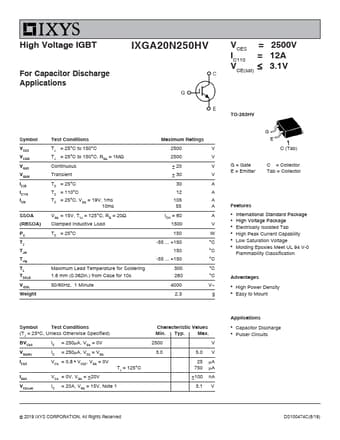

• Applications IXGA20N250HV VCES = IC110 = VCE(sat)  2500V 12A 3.1V Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOL
