IXGA24N120C3 Datasheet, igbt equivalent, IXYS Corporation

IXGA24N120C3 Features

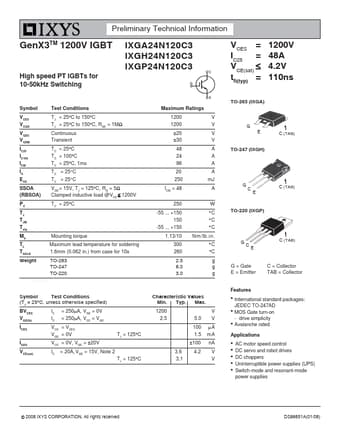

• Igbt Symbol Test Conditions (TJ = 25°C, unless otherwise specified) BVCES VGE(th) ICES IGES VCE(sat) IC IC = 250μA, VGE = 0V = 250μA, VCE = VGE TJ = 125°C 3.6 3.1 Characteristic Values Min.

PDF File Details

Part number:

IXGA24N120C3

Manufacturer:

IXYS Corporation

File Size:

210.60kb

Download:

📄 Datasheet

Description:

Genx3 1200v igbt.

IXGA24N120C3 Application

• Applications z z z z z AC motor speed control DC servo and robot drives DC choppers Uninterruptible power supplies (UPS) Switch-mode and resonant-m
