IXGA20N120 Datasheet, Igbt, IXYS Corporation

IXGA20N120 Features

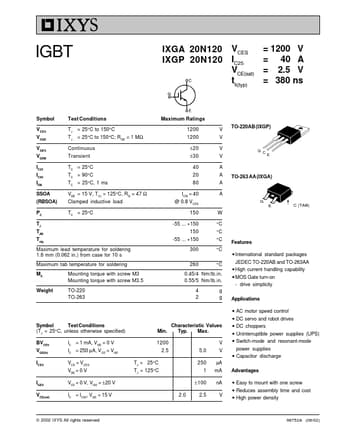

• Igbt V V V V A A A A G E C (TAB) G C E TO-220AB (IXGP) TO-263 AA (IXGA) Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Maximum tab temperature for soldering

PDF File Details

Part number:

IXGA20N120

Manufacturer:

IXYS Corporation

File Size:

93.64kb

Download:

📄 Datasheet

Description:

Igbt.

IXGA20N120 Application

• Applications Weight Symbol Test Conditions (TJ = 25°C, unless otherwise specified) BVCES VGE(th) ICES IC = 1 mA, VGE = 0 V IC = 250 µA, VCE = VGE
