IXGA20N120B3, GenX3 1200V IGBT

Preliminary Technical Information GenX3TM 1200V IGBT IXGA20N120B3 IXGP20N120B3 VCES = 1200V IC90 = 20A VCE(sat) ≤ 3.1V High Speed Low Vsat PT IGBT.

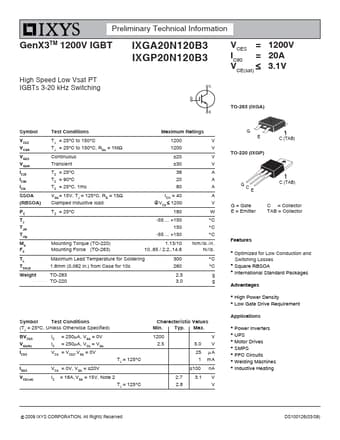

datasheet Preview Page 1 from Datasheet4u.com

IXGA20N120B3_IXYSCorporation.pdf

IXGA20N120B3 Datasheet Preview — Preview of IXGA20N120B3 PDF

Datasheet Details

Part number:

IXGA20N120B3

Manufacturer:

IXYS Corporation

File Size:

232.48 KB

Description:

GenX3 1200V IGBT

Features

* z Maximum Lead Temperature for Soldering 1.6mm (0.062 in. ) from Case for 10s TO-263 TO-220 z z Optimized for Low Conduction and Switching Losses Square RBSOA International Standard Packages Advantages z z High Power Density Low Gate Drive Requirement Symbol Test Conditions (TJ = 25°C, Unless O

Applications

* z z z z z z z VCE = VCES,VGE = 0V VCE = 0V, VGE = ±20V IC = 16A, VGE = 15V, Note 2 Power Inverters UPS Motor Drives SMPS PFC Circuits Welding Machines Inductive Heating © 2009 IXYS CORPORATION, All Rights Reserved DS100126(03/09) IXGA20N120B3 IXGP20N120B3 Symbol Test Conditions (TJ = 25°C, Unle
