IXGH20N60B IGBT

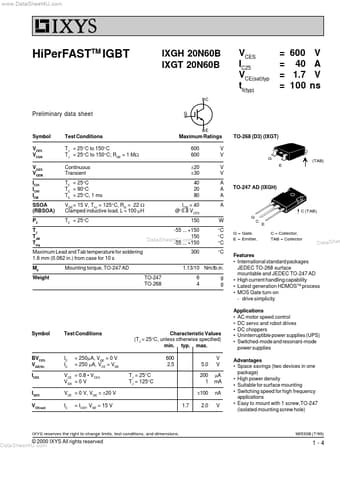

www.DataSheet4U.com HiPerFASTTM IGBT IXGH 20N60B IXGT 20N60B VCES IC25 VCE(sat)typ tfi(typ) = 600 V = 40 A = 1.7 V = 100 ns Preliminary data sheet Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 22 W Clamped inductive load, L = 100 mH TC = 25°C Maximum Ratings 600 600 ±20 ±30 40 20 80 ICM = 40 @ 0.8 VCES 150 -55 +15.

IXGH20N60B Features

* International standard packages JEDEC TO-268 surface mountable and JEDEC TO-247 AD

* High current handling capability

* Latest generation HDMOSTM process

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed control

* DC servo and robot
