IXGH25N120, High speed IGBT

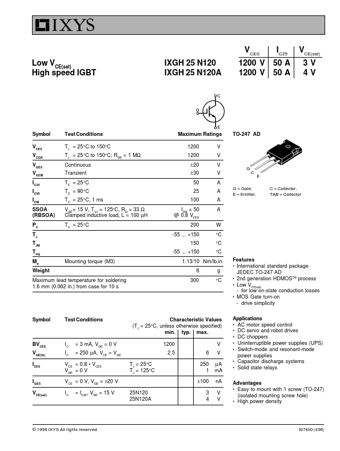

Low V CE(sat) High speed IGBT IXGH 25 N120 IXGH 25 N120A VCES 1200 V 1200 V IC25 50 A 50 A VCE(sat) 3V 4V Symbol Test Conditions VCES VCGR VGES.

datasheet Preview Page 1 from Datasheet4u.com

IXGH25N120-IXYS.pdf

IXGH25N120 Datasheet Preview — Preview of IXGH25N120 PDF

Datasheet Details

Part number:

IXGH25N120

Manufacturer:

IXYS

File Size:

45.89 KB

Description:

High speed IGBT

Features

* l International standard package JEDEC TO-247 AD l 2nd generation HDMOSTM process l Low V CE(sat) - for low on-state conduction losses l MOS Gate turn-on - drive simplicity Symbol BVCES V GE(th) I CES IGES VCE(sat) Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min.

Applications

* l AC motor speed control l DC servo and robot drives l DC choppers l Uninterruptible power supplies (UPS) l Switch-mode and resonant-mode power supplies l Capacitor discharge systems l Solid state relays Advantages l Easy to mount with 1 screw (TO-247) (isolated mounting screw hole) l High power den
