IXGH25N100A, IXGH25N100, High speed IGBT

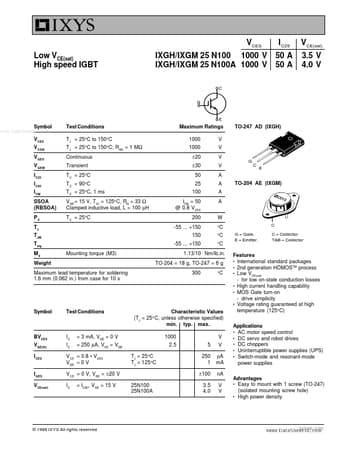

VCES Low VCE(sat) High speed IGBT IXGH/IXGM 25 N100 1000 V IXGH/IXGM 25 N100A 1000 V I C25 50 A 50 A VCE(sat) 3.5 V 4.0 V Symbol www.DataSheet4U.co.

datasheet Preview Page 1 from Datasheet4u.com

IXGH25N100_IXYSCorporation.pdf

IXGH25N100A Datasheet Preview — This datasheet PDF includes multiple part numbers: IXGH25N100A, IXGH25N100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXGH25N100A, IXGH25N100

Manufacturer:

IXYS Corporation

File Size:

112.50 KB

Description:

High speed IGBT

Note:

This datasheet PDF includes multiple part numbers: IXGH25N100A, IXGH25N100.
Please refer to the document for exact specifications by model.

Features

* International standard packages 2nd generation HDMOSTM process Low VCE(sat) - for low on-state conduction losses High current handling capability MOS Gate turn-on - drive simplicity Voltage rating guaranteed at high temperature (125°C) l l l l l l BVCES VGE(th) I CES I GES VCE(sat) IC IC = 3 mA,

Applications

* AC motor speed control DC servo and robot drives DC choppers Uninterruptible power supplies (UPS) Switch-mode and resonant-mode power supplies l l l l l l l Advantages Easy to mount with 1 screw (TO-247) (isolated mounting screw hole) High power density © 1996 IXYS All rights reserved 91516E (3
