IXGM17N100 - High speed IGBT

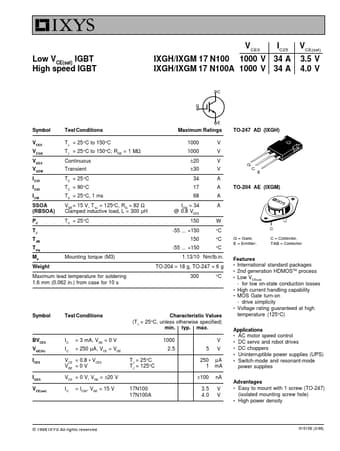

Low V IGBT CE(sat) High speed IGBT VCES IXGH/IXGM 17 N100 1000 V IXGH/IXGM 17 N100A 1000 V IC25 34 A 34 A VCE(sat) 3.5 V 4.0 V Symbol Test Conditions Maximum Ratings VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE= 15 V, TVJ = 125°C, RG = 82 Ω Clamped inductive load, L = 300 µH PC TJ TJM Tstg Md Weight TC = 25°C Mounting torque (M3) Maximum lead temperature for soldering 1.6 m

IXGM17N100 Features

* l International standard packages l 2nd generation HDMOSTM process l Low V CE(sat) - for low on-state conduction losses l High current handling capability l MOS Gate turn-on - drive simplicity l Voltage rating guaranteed at high temperature (125°C) Applications l AC motor speed control l DC servo a
