IXGP4N100 Datasheet, Mosfet, IXYS Corporation

IXGP4N100 Features

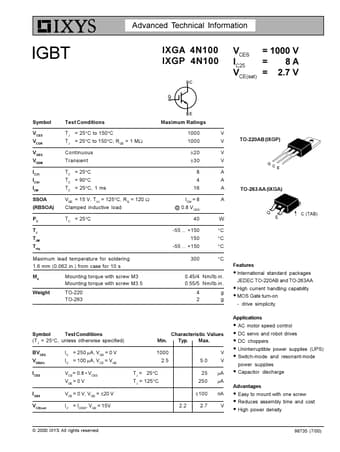

• Mosfet V V V V A A A A G E C (TAB) G CE TO-220AB (IXGP) TO-263 AA (IXGA) Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting torque with screw M3

PDF File Details

Part number:

IXGP4N100

Manufacturer:

IXYS Corporation

File Size:

133.37kb

Download:

📄 Datasheet

Description:

Power mosfet.

IXGP4N100 Application

• Applications standard packages JEDEC TO-220AB and TO-263AA Symbol Test Conditions (TJ = 25°C, unless otherwise specified) BVCES VGE(th) I CES IC =
