IXGP42N30C3 GenX3 300V IGBT

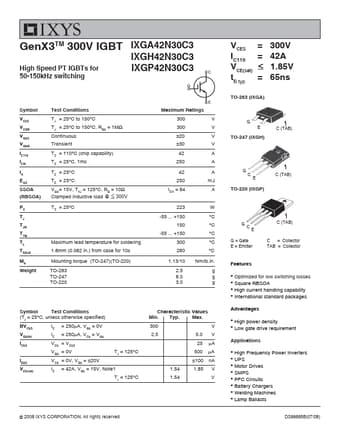

GenX3TM 300V IGBT IXGA42N30C3 High Speed PT IGBTs for 50-150kHz switching IXGH42N30C3 IXGP42N30C3 VCES IC110 VCE(sat) tfi typ = = ≤ = 300V 42A 1.85V 65ns TO-263 (IXGA) Symbol VCES VCGR VGES VGEM IC110 ICM IA EAS SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight www.DataSheet4U.net Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 110°C (chip capability) TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 125°C, RG = 10Ω Clamped inductive load @ ≤ 300V .

IXGP42N30C3 Features

* z z z z Optimized for low switching losses Square RBSOA High current handling capability International standard packages Symbol Test Conditions (TJ = 25°C, unless otherwise specified) BVCES VGE(th) ICES IGES VCE(sat) IC IC = 250μA, VGE = 0V = 250μA, VCE = VGE TJ = 125°C Characteristic Values Min.
