CLA60PD1200NA Datasheet - IXYS

High Efficiency Thyristor

CLA60PD1200NA Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

CLA60PD1200NA General Description

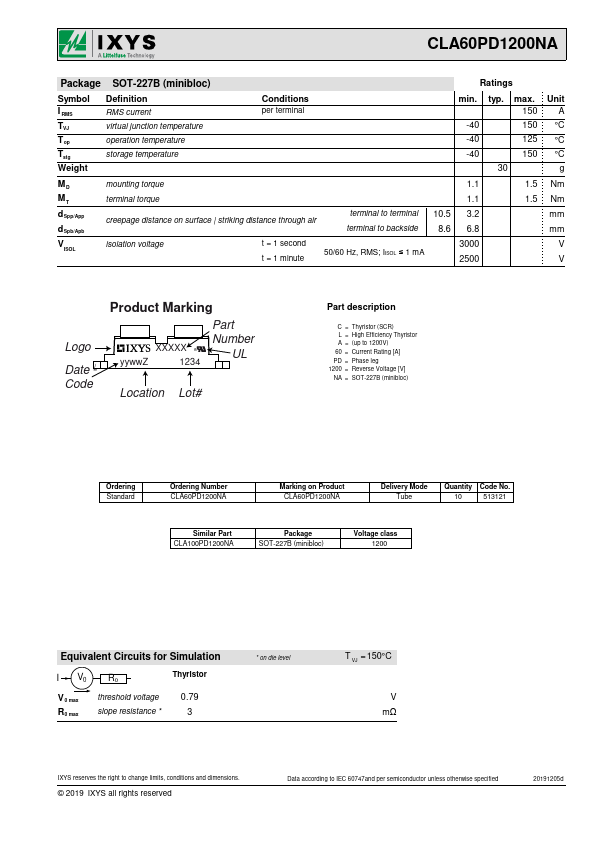

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 60 = Current Rating [A] PD = Phase leg 1200 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number CLA60PD1200NA Marking on Product CLA60PD1200NA Delivery Mode Tube Quantity Code No. 10 513121 Simil.

CLA60PD1200NA Datasheet (551.60 KB)

CLA60PD1200NA Datasheet Preview — Preview of CLA60PD1200NA PDF

Datasheet Details

Part number:

CLA60PD1200NA

Manufacturer:

IXYS

File Size:

551.60 KB

Description:

High efficiency thyristor.

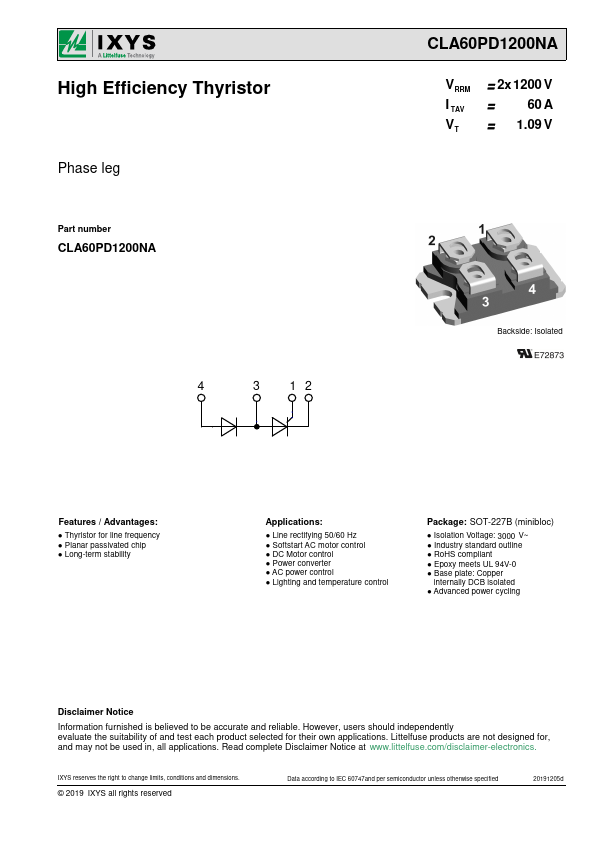

High Efficiency Thyristor Phase leg Part number CLA60PD1200NA 4 3 12 CLA60PD1200NA VRRM I TAV VT = 2x 1200 V = 60 A = 1.09 V Backside: Isolated .
