CS35-08io4 Datasheet - IXYS

CS35-08io4 Phase Control Thyristors

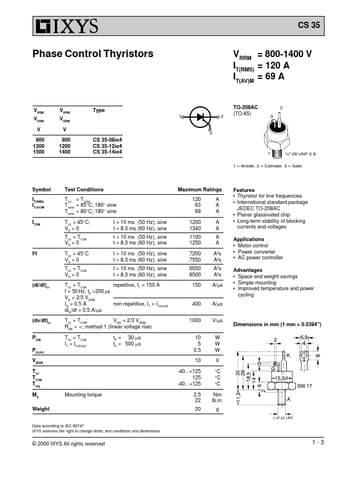

Phase Control Thyristors CS 35 VRRM = 800-1400 V IT(RMS) = 120 A IT(AV)M = 69 A V RSM VDSM V 900 1300 1500 V RRM VDRM V 800 1200 1400 Type CS 35-08io4 CS 35-12io4 CS 35-14io4 TO-208AC 2 1 2 (TO-65) 3 3 1 ¼"-28 UNF-2 A 1 = Anode, 2 = Cathode, 3 = Gate Symbol I T(RMS) IT(AV)M ITSM I2t (di/dt)cr (dv/dt)cr PGM PG(AV) V RGM T VJ TVJM T stg Md Weight Test Conditions T =T VJ VJM Tcase = 85°C; 180° sine Tcase = 80°C; 180° sine TVJ = 45°C; VR = 0 T =T VJ VJM VR = 0 t = 10 ms (50 Hz), sine.

CS35-08io4 Features

* q Thyristor for line frequencies q International standard package JEDEC TO-208AC q Planar glassivated chip q Long-term stability of blocking currents and voltages Applications q Motor control q Power converter q AC power controller Advantages q Space and weight savings q Simple mounting q Improved t
