CS3511

Stereo 10 W High-efficiency Class-D Audio Power Amplifier

Cirrus Logic

CS3511 Features

*  Closed-loop Advanced ΔΣ Architecture  True Spread Spectrum Modulation  Premium Quality Audio Amplification Common Applications  Active Speakers  Portable Media Player Docking Stations  Mini/Micro Shelf Systems  Digital Televisions

* 99 dB Dynamic Range - System

CS3511 General Description

The CS3511 is a high-efficiency class-D PWM amplifier that integrates on-chip over-current, under-voltage, over-temperature protection, and error reporting. An onboard regulator generates a 5 VDC supply used to power the internal low-voltage analog and digital circuitry. The low RDS(ON) outputs can .

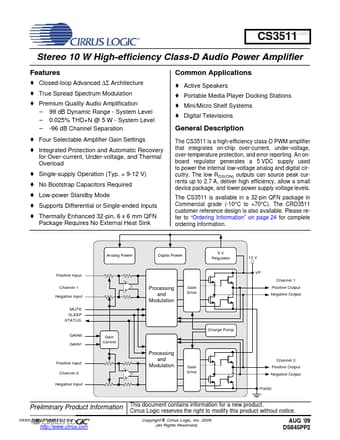

CS3511 Datasheet (437.05 KB)

CS3511 Datasheet Preview — Preview of CS3511 PDF

Datasheet Details

Part number:

CS3511

Manufacturer:

Cirrus Logic

File Size:

437.05 KB

Description:

Stereo 10 w high-efficiency class-d audio power amplifier.
