CS35L00 Datasheet, amplifier equivalent, Cirrus Logic

CS35L00 Features

  • Amplifier  Hybrid Class-D Architecture
      – <1 mA Quiescent Current
      – 1 x 2.8 W into 4 Ω (10% THD+N)
      – 1 x 2.3 W into 4 Ω (1% THD+N)


PDF File Details

Part number:

CS35L00

Manufacturer:

Cirrus Logic

File Size:

460.98kb

Download:

📄 Datasheet

Description:

2.7 w mono class-d audio amplifier. The CS35L00 is a 2.8 W high efficiency Hybrid Class-D audio amplifier with low idle current consumption and a selectable gain. The CS

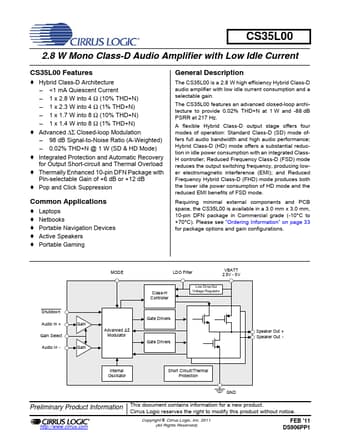

Datasheet Preview: CS35L00 📥 Download PDF (460.98kb)
Page 2 of CS35L00 Page 3 of CS35L00

CS35L00 Application

  • Applications  Laptops  Netbooks  Portable Navigation Devices  Active Speakers  Portable Gaming General Description The CS35L00 is a 2.8 W high
