CS35N04A4-G Datasheet - Huajing Microelectronics

CS35N04A4-G Silicon N-Channel Power MOSFET

CS35N04 A4-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications. The package form is TO-2.

CS35N04A4-G Features

* Fast Switching

* Low ON Resistance(Rdson≤14 mΩ)

* Low Gate Charge

* Low Reverse transfer capacitances

* 100% Single Pulse avalanche energy Test

* Halogen Free Applications： Power switch circuit of adaptor and charger. VDSS ID PD RDS(ON)Typ 40 V 35 A 34.6 W 10.5 mΩ Absol

CS35N04A4-G-HuajingMicroelectronics.pdf

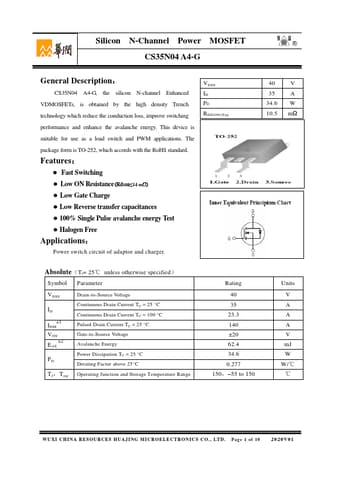

Preview of CS35N04A4-G PDF
CS35N04A4-G Datasheet Preview Page 2 CS35N04A4-G Datasheet Preview Page 3

Datasheet Details

Part number:

CS35N04A4-G

Manufacturer:

Huajing Microelectronics

File Size:

760.55 KB

Description:

Silicon n-channel power mosfet.
