* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
DSEP15-06A Datasheet (139.32 KB)
DSEP15-06A
IXYS
139.32 KB

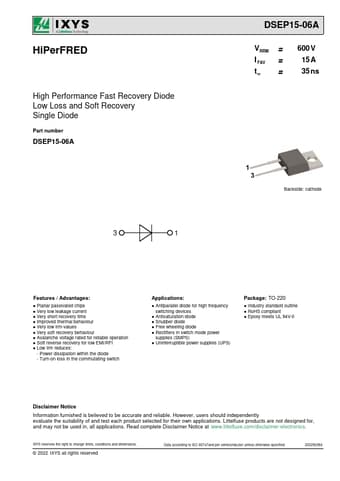

High performance fast recovery diode.
DSEP15-06A
HiPerFRED
VRRM I FAV t rr
= = =
600 V 15 A 35 ns
High Performance Fast Recovery Diode Low Loss and Soft Recovery Single Diode
Part num.
