* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
DSEP2X31-12A Datasheet (131.22 KB)
DSEP2X31-12A
IXYS
131.22 KB

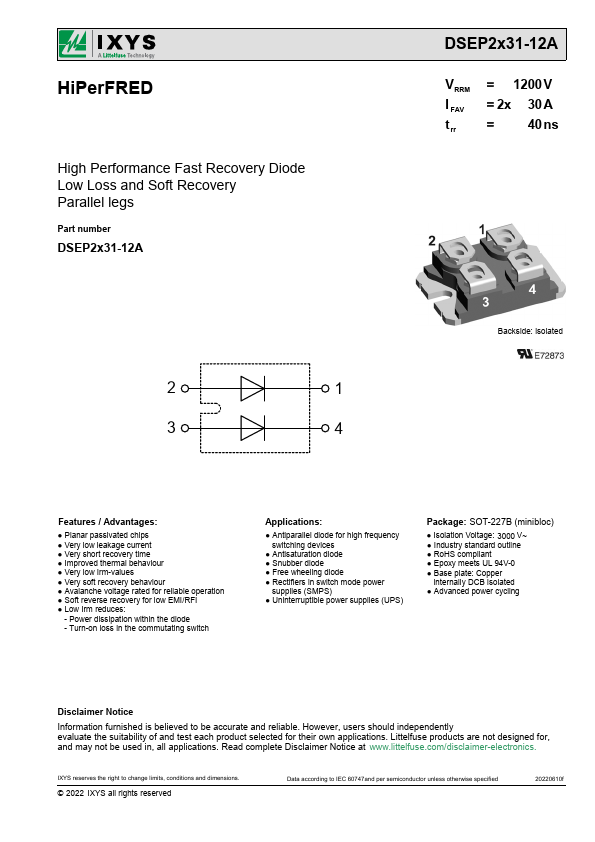

High performance fast recovery diode.
DSEP2x31-12A
HiPerFRED
High Performance Fast Recovery Diode Low Loss and Soft Recovery Parallel legs
Part number
V RRM = 1200 V I FAV = 2x 30 A t rr.
