* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

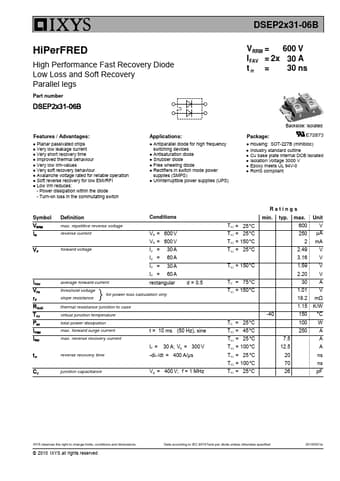

DSEP2x31-06B Datasheet (118.48 KB)
DSEP2x31-06B
IXYS
118.48 KB
High performance fast recovery diode.
DSEP2x31-06B
HiPerFRED
High Performance Fast Recovery Diode Low Loss and Soft Recovery Parallel legs
Part number
DSEP2x31-06B
VRRM = 600 V
IFAV = 2.
