IXFA270N06T3 - Power MOSFET

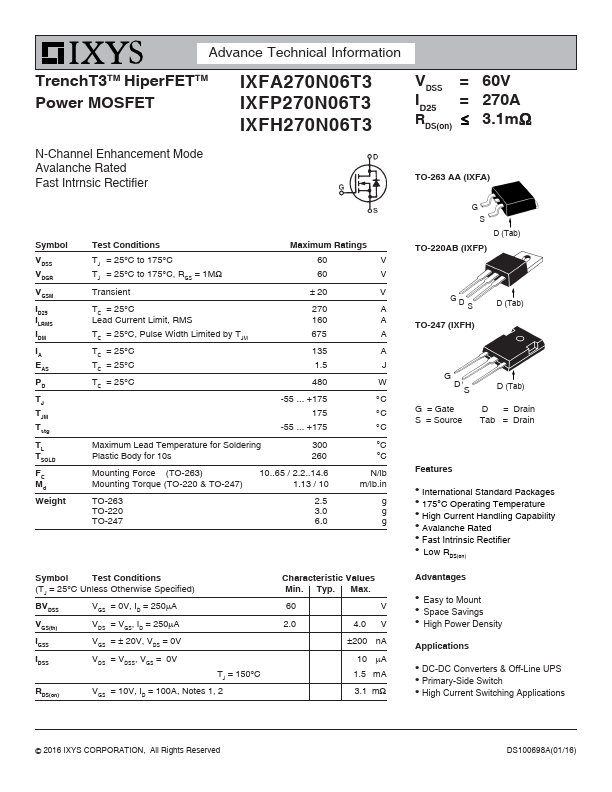

Advance Technical Information TrenchT3TM HiperFETTM Power MOSFET IXFA270N06T3 IXFP270N06T3 IXFH270N06T3 VDSS = ID25 = RDS(on)  60V 270A 3.1m N-Channel Enhancement Mode Avalanche Rated Fast Intrnsic Rectifier TO-263 AA (IXFA) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 175C TJ = 25C to 175C, RGS = 1M Transient TC = 25C Lead Current Limit, RMS TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C Maximu.

IXFA270N06T3 Features

* International Standard Packages

* 175°C Operating Temperature

* High Current Handling Capability

* Avalanche Rated

* Fast Intrinsic Rectifier

* Low RDS(on) Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* DC-DC Converters & Off-
