IXGF20N300 Datasheet, Igbt, IXYS

IXGF20N300 Features

• Igbt Silicon Chip on Direct-Copper Bond (DCB) Substrate Isolated Mounting Surface 4000V Electrical Isolation High Peak Current Capability Low Saturation Voltage Molding Epoxies Meet UL 94 V-

PDF File Details

Part number:

IXGF20N300

Manufacturer:

IXYS

File Size:

247.81kb

Download:

📄 Datasheet

Description:

High voltage igbt.

IXGF20N300 Application

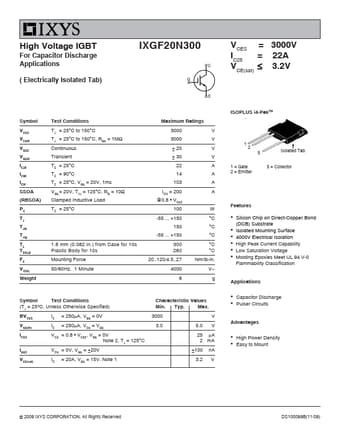

• Applications ( Electrically Isolated Tab) IXGF20N300 VCES = IC25 = VCE(sat) ≤ 3000V 22A 3.2V Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSO
