IXGF25N250 High Voltage IGBT

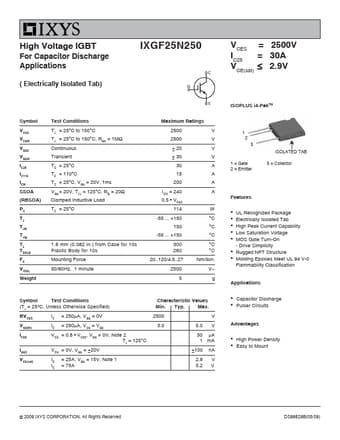

High Voltage IGBT For Capacitor Discharge Applications ( Electrically Isolated Tab) IXGF25N250 VCES = 2500V IC25 = 30A VCE(sat) ≤ 2.9V ISOPLUS i4-PakTM Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD FC VISOL Weight 1.6 mm (0.062 in.) from Case for 10s Plastic Body for 10s Mounting Force 50/60Hz, 1 minute Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, VGE = 20V, 1ms VGE = 20V, TVJ = 125°C, RG.

IXGF25N250 Features

* UL Recognized Package Electrically Isolated Tab High Peak Current Capability Low Saturation Voltage MOS Gate Turn-On - Drive Simplicity Rugged NPT Structure Molding Epoxies Meet UL 94 V-0 Flammability Classification Applications Capacitor Discharge Pulser Circuits V 5.0 V Advantages High Power Densi
