IXGF30N400 High Voltage IGBT

High Voltage IGBT For Capacitor Discharge Applications ( Electrically Isolated Tab) Not For New Designs IXGF30N400 VCES = 4000V IC25 = 30A VCE(sat)  3.1V Symbol VCES VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD FC VISOL Weight Test Conditions Maximum Ratings TJ = 25°C to 150°C Continuous Transient 4000 V ± 20 V ± 30 V TC = 25°C TC = 110°C TC = 25°C, VGE = 20V, 1ms 30 A 15 A 360 A VGE= 20V, TVJ = 125°C, RG = 2 ICM = 300 A Clamped Inductive Load VCE  0.8.

IXGF30N400 Features

* Silicon Chip on Direct-Copper Bond (DCB) Substrate

* Isolated Mounting Surface

* 4000V Electrical Isolation

* High Peak Current Capability

* Low Saturation Voltage

* Molding Epoxies Meet UL 94 V-0 Flammability Classification Advantages

* High Power Density

* Easy to

IXGF30N400 Datasheet (730.39 KB)

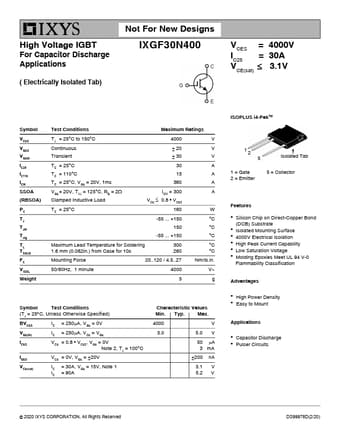

IXGF30N400 Datasheet Preview — Preview of IXGF30N400 PDF

Datasheet Details

Part number:

IXGF30N400

Manufacturer:

IXYS

File Size:

730.39 KB

Description:

High voltage igbt.
