IXGF25N300 Datasheet, Igbt, IXYS Corporation

IXGF25N300 Features

  • Igbt Applications Advantages ria l ISOPLUS i4-PakTM V V V 1 2 5 Isolated Tab 5 = Collector 1 = Gate 2 = Emitter Silicon Chip on Direct-Copper Bond (DCB) Substrate Isolated Mounting Surface

PDF File Details

Part number:

IXGF25N300

Manufacturer:

IXYS Corporation

File Size:

184.92kb

Download:

📄 Datasheet

Description:

High voltage igbt.

Datasheet Preview: IXGF25N300 📥 Download PDF (184.92kb)
Page 2 of IXGF25N300

IXGF25N300 Application

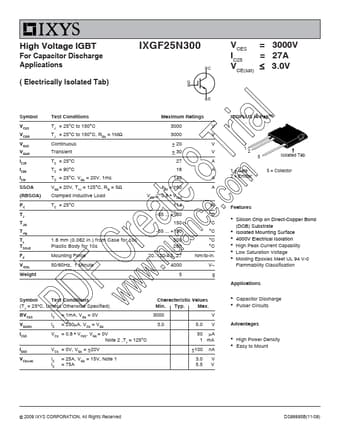

  • Applications ( Electrically Isolated Tab) IXGF25N300 VCES = 3000V IC25 = 27A VCE(sat) ≤ 3.0V Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA
