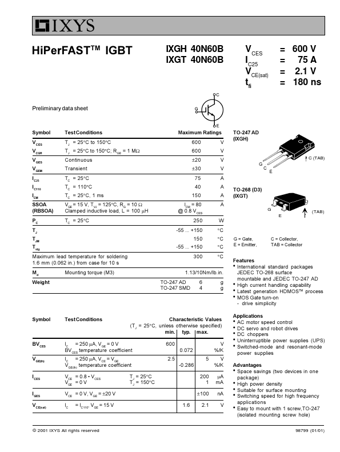

HiPerFASTTM IGBT Preliminary data sheet IXGH 40N60B IXGT 40N60B VCES IC25 V CE(sat) tfi = 600 V = 75 A = 2.1 V = 180 ns Symbol Test Conditions VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load, L = 100 mH PC TC = 25°C TJ TJM Tstg Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting
