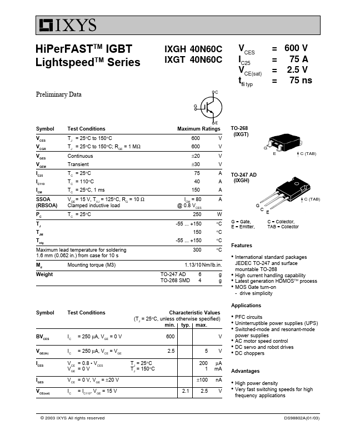

HiPerFASTTM IGBT LightspeedTM Series Preliminary Data IXGH 40N60C IXGT 40N60C V CES IC25 VCE(sat) tfi typ = 600 V = 75 A = 2.5 V = 75 ns Symbol Test Conditions VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE= 15 V, TVJ = 125°C, RG = 10 Ω Clamped inductive load PC TC = 25°C TJ TJM Tstg Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mount.

IXGH40N60C Features

* z International standard packages JEDEC TO-247 and surface mountable TO-268 z High current handling capability z Latest generation HDMOSTM process z MOS Gate turn-on - drive simplicity Applications z PFC circuits z Uninterruptible power supplies (UPS) z Switched-mode and resonant-mode power supplies
