IXGX64N60B3D1 Medium speed low Vsat PT IGBT

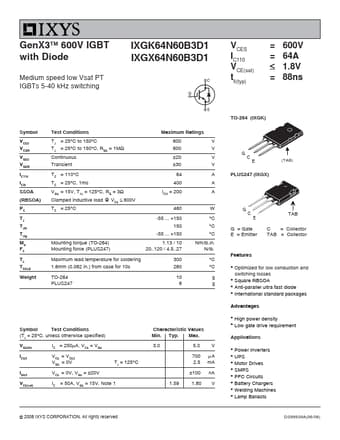

GenX3TM 600V IGBT with Diode Medium speed low Vsat PT IGBTs 5-40 kHz switching IXGK64N60B3D1 IXGX64N60B3D1 VCES IC110 VCE(sat) tfi(typ) = 600V = 64A ≤£ 1.8V = 88ns Symbol VCES VCGR VGES VGEM IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Md FC TL TSOLD Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 3Ω Clamped inductive load @ VCE ≤ 600V TC = 25°C Mounting torque (TO-264) Mounting force (PLUS247) Max.

IXGX64N60B3D1 Features

* z Optimized for low conduction and switching losses z Square RBSOA z Anti-parallel ultra fast diode z International standard packages Advantages z High power density z Low gate drive requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z Battery Chargers z Welding Ma
