* z Very high frequency IGBT z Square RBSOA z High current handling capability z MOS Gate turn-on - drive simplicity Applications z Uninterruptible power supplies (UPS) z Switched-mode and resonant-mode power supplies z AC motor speed control z DC servo and robot drives z DC choppers Advantages z High
IXGX120NC60C2 Datasheet (182.38 KB)
IXGX120NC60C2
IXYS
182.38 KB
Hiperfast igbt.

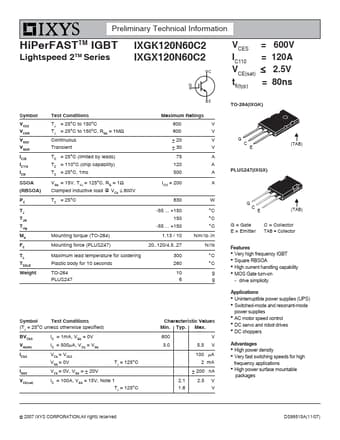

ADVANCE TECHNICAL INFORMATION
HiPerFASTTM IGBT
Lightspeed 2TM Series
IXGK 120N60C2 IXGX 120N60C2
VCES IC110 VCE(sat) tfi(typ)
= 600 V = 120 A = 2..
