* z Optimized for Low Conduction and Switching Losses z High Current Capability z Square RBSOA Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z Battery Chargers z Welding Machines z Lamp Ballasts © 2010 IXYS CORPO
IXGX320N60B3 Datasheet (202.87 KB)
IXGX320N60B3
IXYS
202.87 KB
Medium-speed low-vsat pt igbt.

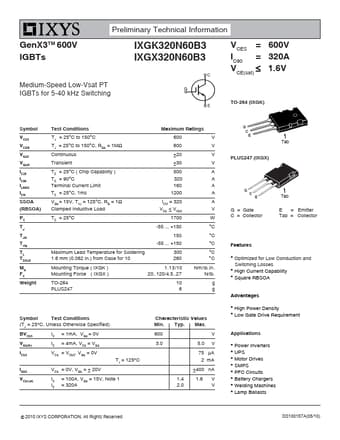

Preliminary Technical Information
GenX3TM 600V IGBTs
IXGK320N60B3 IXGX320N60B3
VCES = IC90 = VCE(sat) ≤
600V 320A 1.6V
Medium-Speed Low-Vsat PT I.
