IXXH75N60B3D1 - Extreme Light Punch Through IGBT

XPTTM 600V IGBT GenX3TM w/ Diode IXXH75N60B3D1 Extreme Light Punch Through IGBT for 5-30 kHz Switching Symbol VCES VCGR VGES VGEM IC25 IC110 IF110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 110°C TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 5Ω Clamped Inductive Load VGE= 15V, VCE = 360V, TJ = 150°C RG = 22Ω, Non Repetitive TC = 25°C Max.

IXXH75N60B3D1 Features

* z Optimized for 5-30kHz Switching z Square RBSOA z Anti-Parallel Ultra Fast Diode z Avalanche Capability z Short Circuit Capability z International Standard Package Advantages z High Power Density z 175°C Rated z Extremely Rugged z Low Gate Drive Requirement Applications z Power Inverters z UPS z Mo

IXXH75N60B3D1-IXYS.pdf

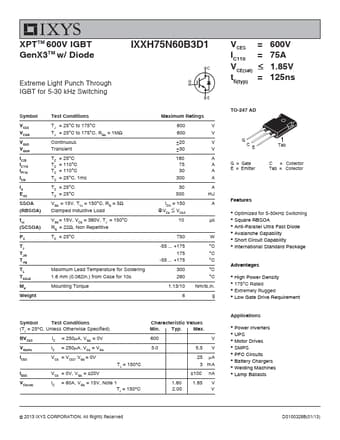

IXXH75N60B3D1 Datasheet Preview — Preview of IXXH75N60B3D1 PDF
