IXYK140N90C3 IGBT

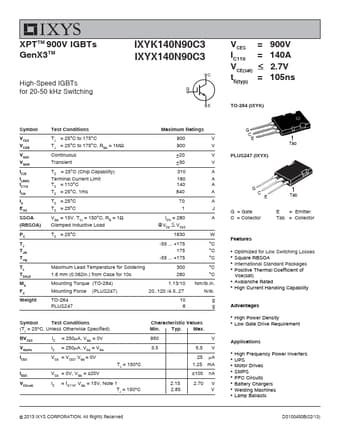

XPTTM 900V IGBTs GenX3TM High-Speed IGBTs for 20-50 kHz Switching IXYK140N90C3 IXYX140N90C3 VCES = IC110 = V ≤CE(sat) tfi(typ) = 900V 140A 2.7V 105ns TO-264 (IXYK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM IA EAS SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1MΩ Continuous Transient 900 V 900 V ±20 V ±30 V TC = 25°C (Chip Capability) Terminal Current Limit TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°.

IXYK140N90C3 Features

* z Optimized for Low Switching Losses z Square RBSOA z International Standard Packages z Positive Thermal Coefficient of Vce(sat) z Avalanche Rated z High Current Handling Capability Advantages z High Power Density z Low Gate Drive Requirement Applications z High Frequency Power Inverters z UPS z Mot

IXYK140N90C3 Datasheet (200.02 KB)
