* High Voltage Package Optimized for Low Switching Losses Square RBSOA Positive Thermal Coefficient of Vce(sat) Avalanche Rated International Standard Packages Advantages
* Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVCES VGE(th) ICES IGE

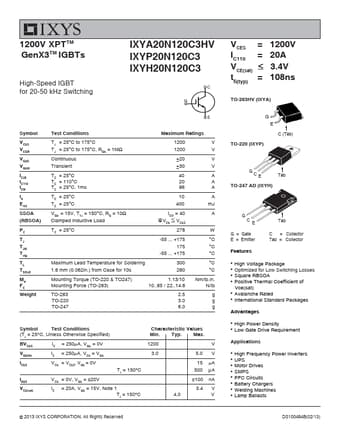

IXYA20N120C3HV Datasheet (227.38 KB)
IXYA20N120C3HV
IXYS Corporation
227.38 KB
1200v xpt genx3 igbts.
1200V XPTTM GenX3TM IGBTs
High-Speed IGBT for 20-50 kHz Switching
IXYA20N120C3HV IXYP20N120C3 IXYH20N120C3
VCES = IC110 = VCE(sat) tfi(typ) =
1.
