IXYA20N120C4HV - IGBT

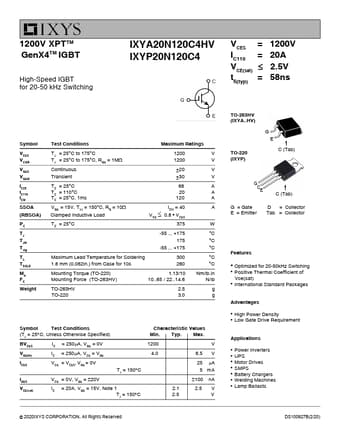

1200V XPTTM GenX4TM IGBT High-Speed IGBT for 20-50 kHz Switching IXYA20N120C4HV IXYP20N120C4 VCES = 1200V IC110 = 20A VCE(sat)  2.5V tfi(typ) = 58ns Symbol VCES VCGR VGES VGEM IIICCC21M510 SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD MFCd Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 1200 1200 ±20 ±30 V V V V TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 10 Clamped Inductive Load TC = 25°C 68 20 120 ICM = 40.

IXYA20N120C4HV Features

* Optimized for 20-50kHz Switching

* Positive Thermal Coefficient of Vce(sat)

* International Standard Packages Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* Battery Chargers

* Wel
