* Optimized for Low Conduction Losses
* Positive Thermal Coefficient of Vce(sat)
* International Standard Packages Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Drives
* SMPS
* Battery Chargers

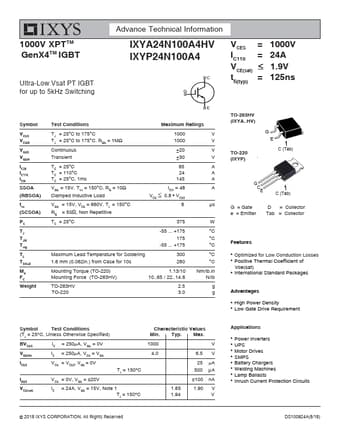

IXYA24N100A4HV Datasheet (349.56 KB)
IXYA24N100A4HV
IXYS
349.56 KB
Ultra-low vsat pt igbt.
1000V XPTTM GenX4TM IGBT
Ultra-Low Vsat PT IGBT for up to 5kHz Switching
Advance Technical Information
IXYA24N100A4HV IXYP24N100A4
VCES = 1000V
IC.
