IXYA24N100C4HV, High Speed IGBT

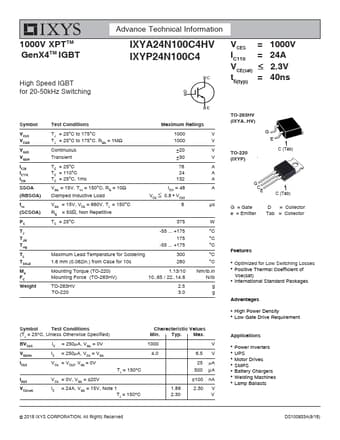

1000V XPTTM GenX4TM IGBT High Speed IGBT for 20-50kHz Switching Advance Technical Information IXYA24N100C4HV IXYP24N100C4 VCES = 1000V IC110 = 24A V CE(sat) 2.3V tfi(typ) = 40ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 1000 V 1000 V ±20 V ±30 V TC = 25°C TC = 110°C TC = 25°C, 1ms 76 A 24 A 132 A VGE =
IXYA24N100C4HV Features
* Optimized for Low Switching Losses
* Positive Thermal Coefficient of Vce(sat)
* International Standard Packages Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Drives
* SMPS
* Battery Chargers
* W
