IXYH50N120C3D1 Datasheet - IXYS Corporation

IXYH50N120C3D1 - High-Speed IGBT

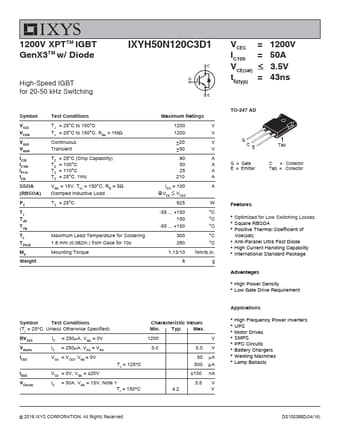

1200V XPTTM IGBT GenX3TM w/ Diode IXYH50N120C3D1 High-Speed IGBT for 20-50 kHz Switching Symbol VCES VCGR VGES VGEM IC25 IC100 IF110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M Continuous Transient TC = 25°C (Chip Capability) TC = 100°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 5 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque Maxi

IXYH50N120C3D1 Features

* Optimized for Low Switching Losses

* Square RBSOA

* Positive Thermal Coefficient of Vce(sat)

* Anti-Parallel Ultra Fast Diode

* High Current Handling Capability

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Application

IXYH50N120C3D1_IXYSCorporation.pdf

Preview of IXYH50N120C3D1 PDF

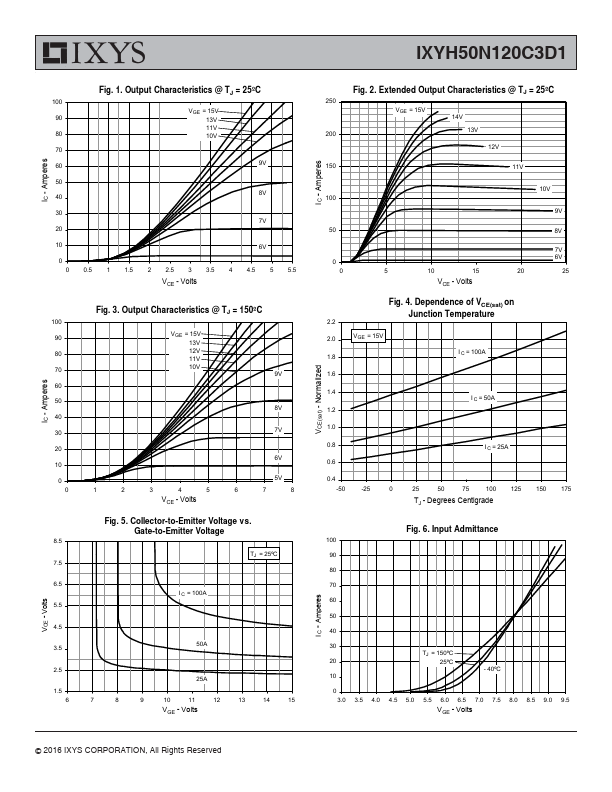

IXYH50N120C3D1 Datasheet Preview Page 2 IXYH50N120C3D1 Datasheet Preview Page 3
