MDD310-14N1 Standard Rectifier

MDD310-14N1 Description

Standard Rectifier Module Phase leg Part number MDD310-14N1 2 1 3 MDD310-14N1 VRRM I FAV VF = 2x 1400 V = 300 A = 1V Backside: isolated Fea.

MDD310-14N1 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

MDD310-14N1 Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: Y2
* Isolation Voltage: 3600 V~
* Industry stand

📥 Download Datasheet

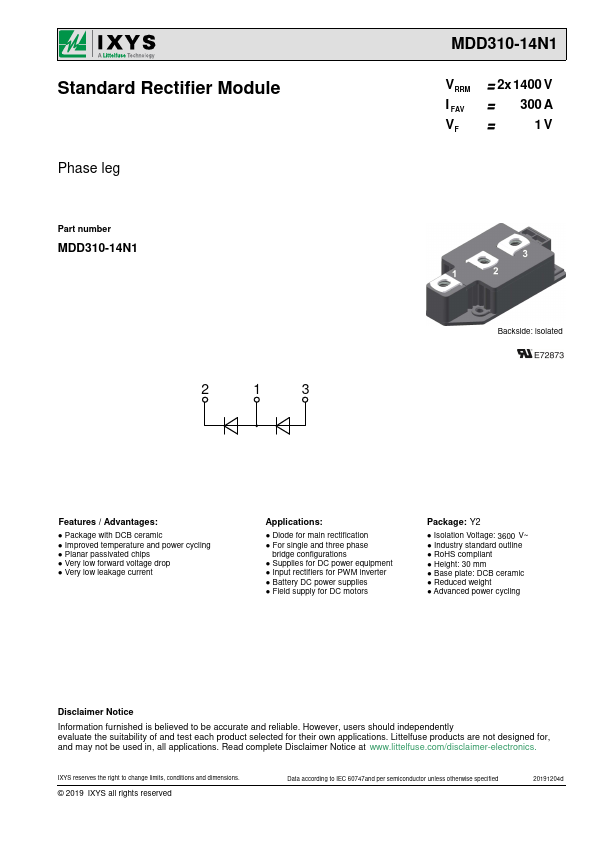

Preview of MDD310-14N1 PDF

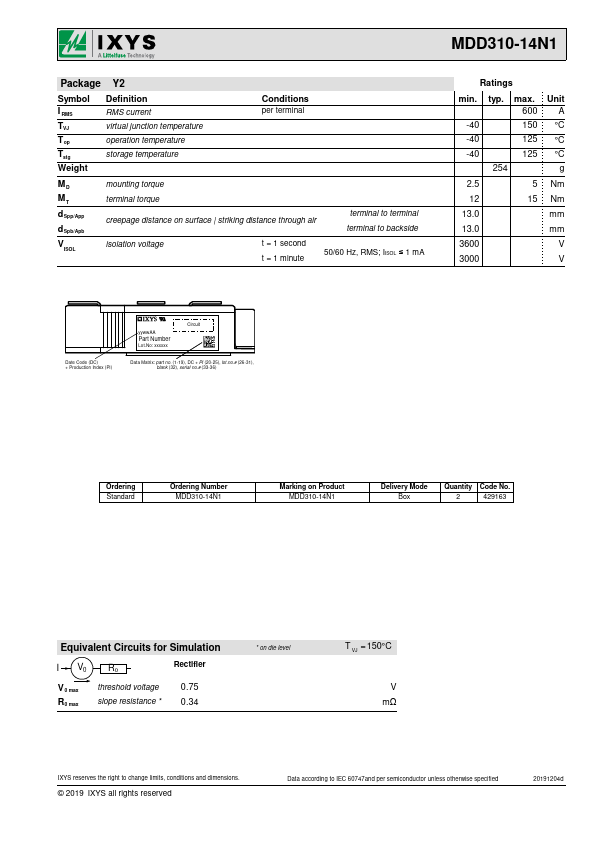

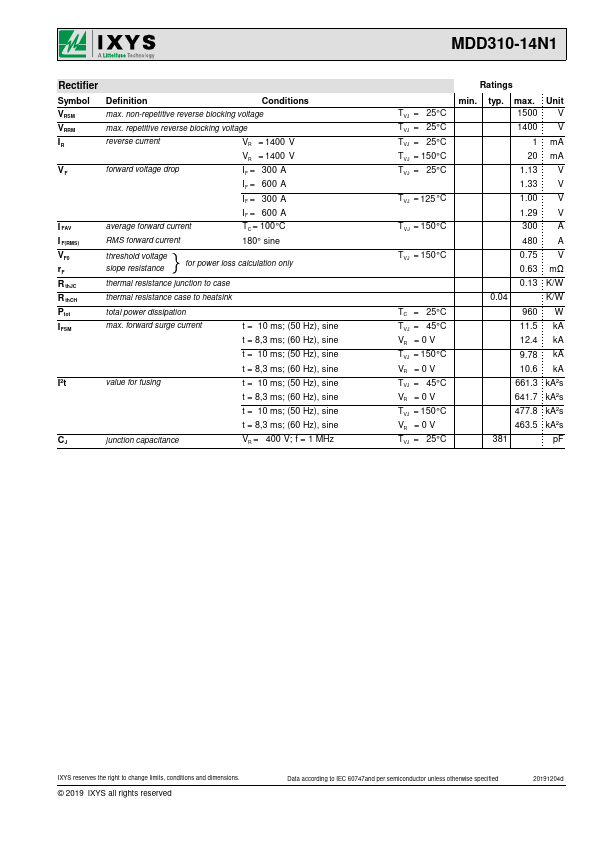

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDD310-14N1
Manufacturer
IXYS
File Size
181.40 KB
Datasheet
MDD310-14N1-IXYS.pdf
Description
Standard Rectifier
