MDMA380P1600KC Datasheet - IXYS

Standard Rectifier Module

MDMA380P1600KC Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour Applications:

* Diode for main rectification

* For single and three phase bridge configurations

* Supplies for DC power equipment

* Input r

MDMA380P1600KC General Description

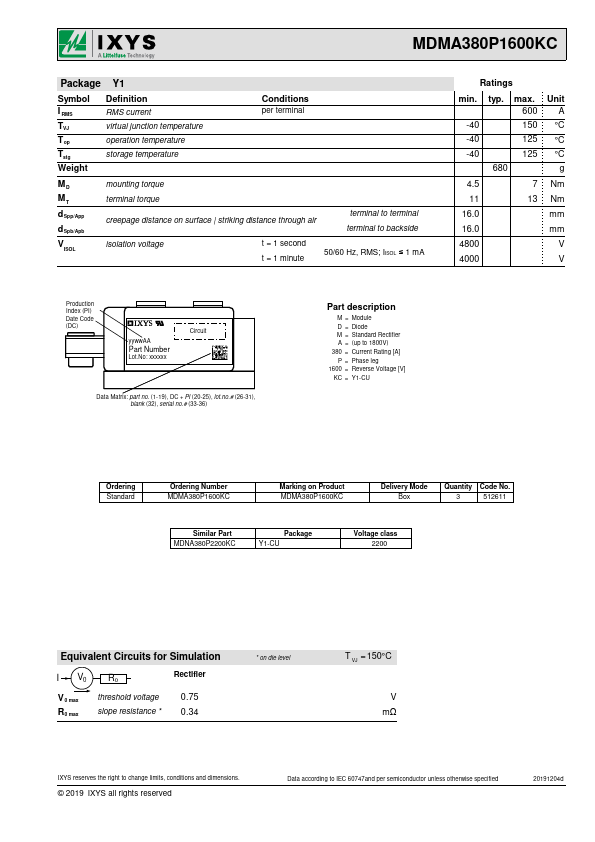

M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 380 = Current Rating [A] P = Phase leg 1600 = Reverse Voltage [V] KC = Y1-CU Ordering Standard Ordering Number MDMA380P1600KC Marking on Product MDMA380P1600KC Delivery Mode Box Quantity Code No. 3 512611 Similar Part MDNA380P2200.

MDMA380P1600KC Datasheet (205.36 KB)

MDMA380P1600KC Datasheet Preview — Preview of MDMA380P1600KC PDF

Datasheet Details

Part number:

MDMA380P1600KC

Manufacturer:

IXYS

File Size:

205.36 KB

Description:

Standard rectifier module.

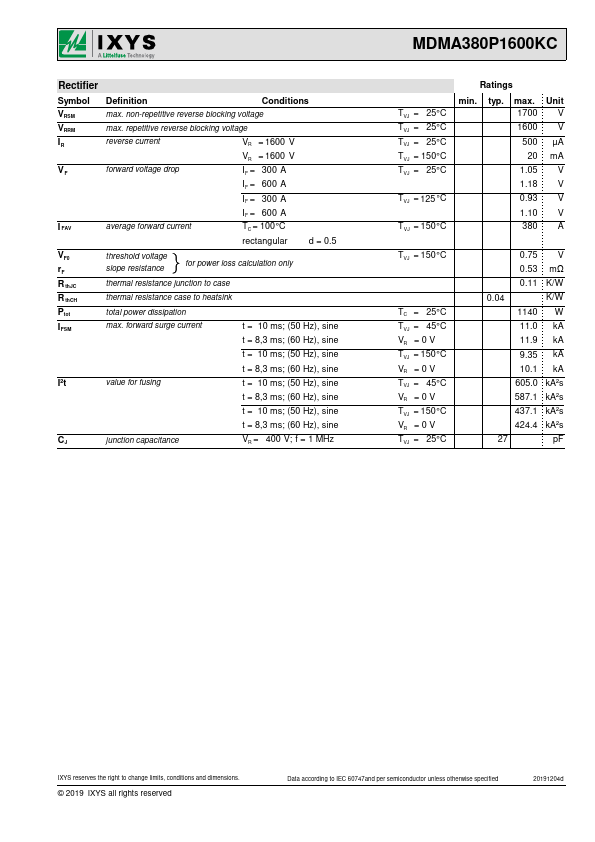

Standard Rectifier Module Phase leg Part number MDMA380P1600KC 2 1 3 MDMA380P1600KC VRRM I FAV VF = 2x 1600 V = 380 A = 0.93 V Backside: isolat.
