MDMA450U1600PTEH Standard Rectifier

IXYS

Description

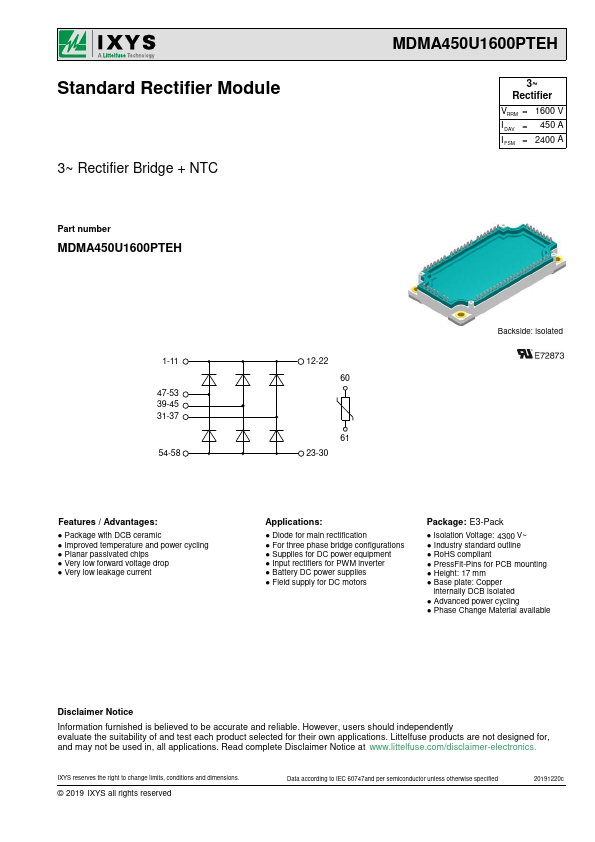

Standard Rectifier Module 3~ Rectifier Bridge + NTC Part number MDMA450U1600PTEH MDMA450U1600PTEH 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 450 A.
M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 450 = Current Rating [A] U = 3~ Rectifier Bridge 1600 = Reverse Voltage [V] PT = PressFi.

📥 Download Datasheet

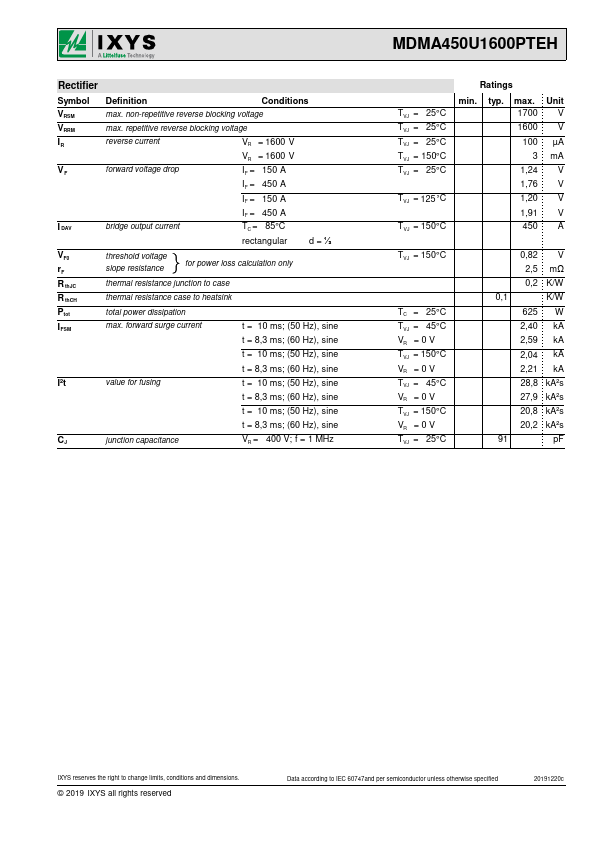

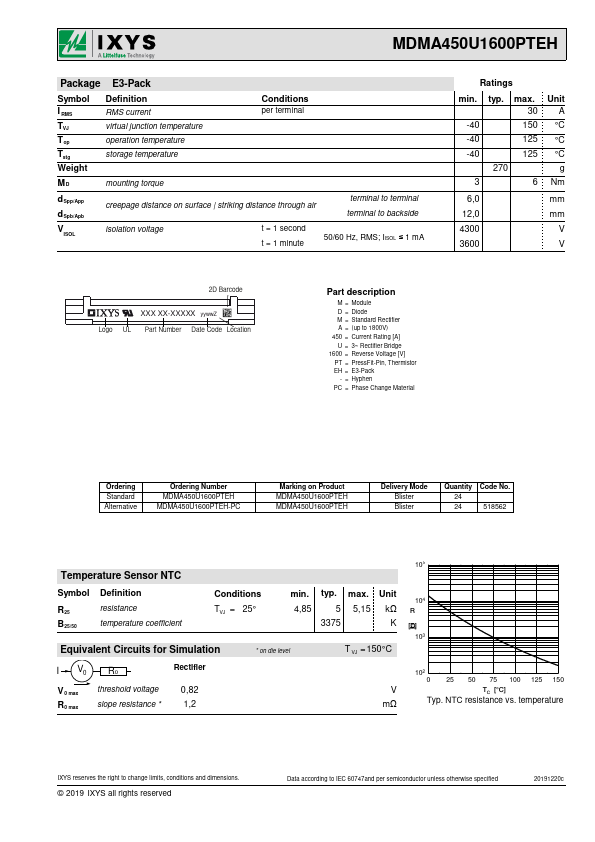

MDMA450U1600PTEH Datasheet Preview — Preview of MDMA450U1600PTEH PDF

Datasheet Specifications

Part number: MDMA450U1600PTEH
Manufacturer: IXYS
File Size: 174.88 KB
Datasheet: MDMA450U1600PTEH-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: E3-Pack
* Isolation Voltage: 4300 V~
* Industry standard ou
