MDMA450UB1600PTED Standard Rectifier

MDMA450UB1600PTED Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC Part number MDMA450UB1600PTED MDMA450UB1600PTED 3~ Rectifier Brake Chopper VRRM =.

MDMA450UB1600PTED Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current
* NTC X2PT Features:
* very low Eoff
* reduced Vce(sat)
* Tjmax = 175°C
* reduced Rth
* v

MDMA450UB1600PTED Applications

* 3~ Rectifier with brake unit for drive inverters Package: E2-Pack
* Isolation Voltage: 4300 V~
* Industry standard outline
* RoHS compliant
* PressFit-Pins for PCB mounting
* Height: 17 mm
* Base plate: Copper internally DCB isolated
* Advanced power cycling

📥 Download Datasheet

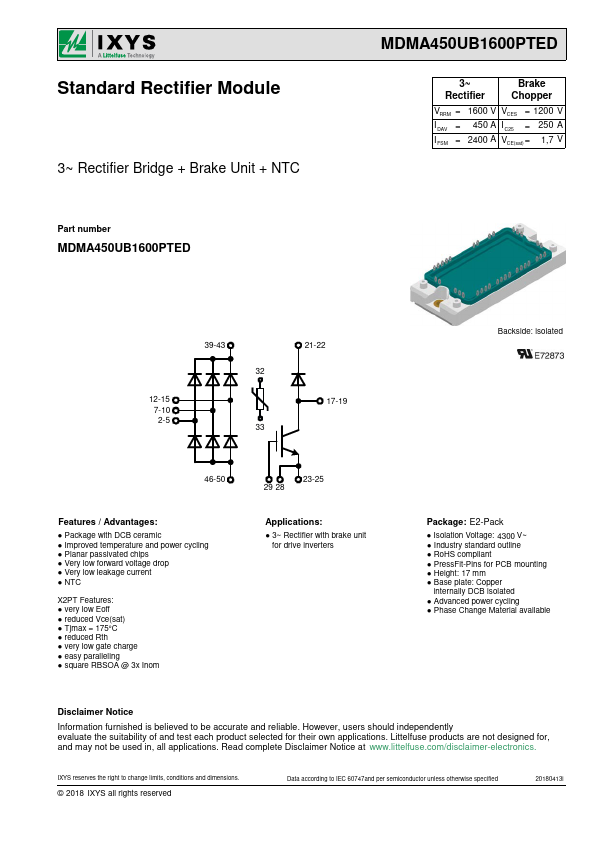

Preview of MDMA450UB1600PTED PDF

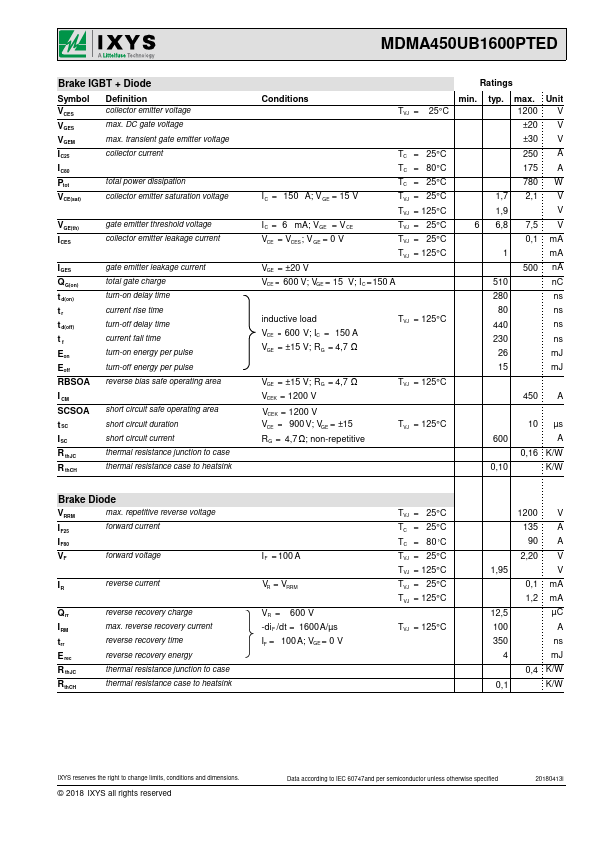

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDMA450UB1600PTED
Manufacturer
IXYS
File Size
217.74 KB
Datasheet
MDMA450UB1600PTED-IXYS.pdf
Description
Standard Rectifier
