ILC803 Datasheet, Monitor, Impala Linear Corporation

ILC803 Features

• Monitor
• Precision Voltage Monitor for 3V, 3.3V or 5V Power Supplies
• 6µA Supply Current
• 140ms Minimum Reset Pulse Width
• RESET Remains Valid with VCC as Lo

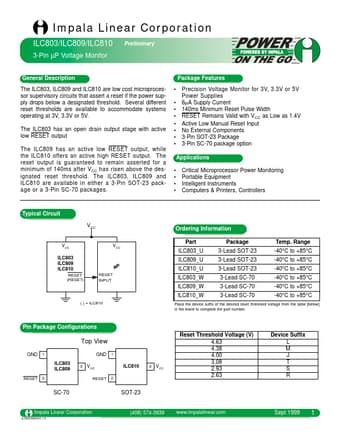

PDF File Details

Part number:

ILC803

Manufacturer:

Impala Linear Corporation

File Size:

79.02kb

Download:

📄 Datasheet

Description:

3-pin up voltage monitor. The ILC803, ILC809 and ILC810 are low cost microprocessor supervisory circuits that assert a reset if the power supply drops below a
