2SA1668 - POWER TRANSISTOR

Product Overview

📥 Download Datasheet

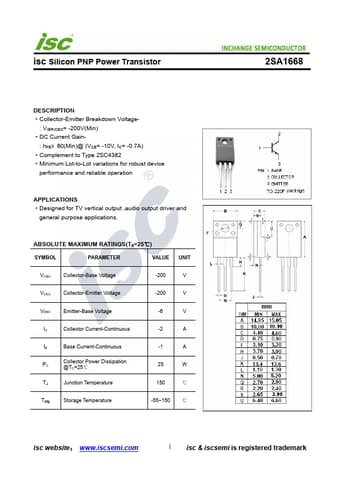

Datasheet preview – 2SA1668

Datasheet Details

Part number 2SA1668
Manufacturer Inchange Semiconductor
File Size 212.19 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1668 Datasheet
Additional preview pages of the 2SA1668 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -200V(Min) DC Current Gain- : hFE= 60(Min)@ (VCE= -10V, IC= -0.7A) Complement to Type 2SC4382 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for TV vertical output ,audio output driver and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -200 V VCEO Collector-Emitter Voltage -200 V
