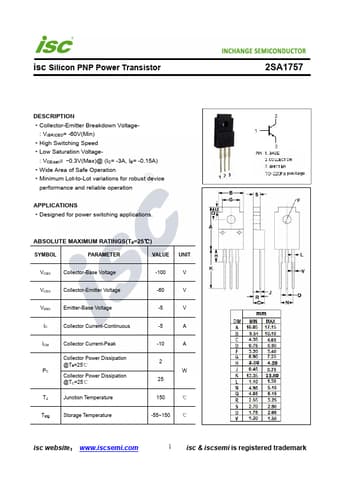

Part number: 2SA1757
Manufacturer: Inchange Semiconductor
File Size: 215.41KB
Download: 📄 Datasheet
Description: POWER TRANSISTOR
*Designed for power switching applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
.
*Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -60V(Min)
*High Switching Speed
*Low Saturation Voltage-
: VCE(sat)= -0.3V(Max)@ (IC= -3A, IB= -0.15A)
*Wide Area of Safe Operation
*Minimum Lot-to-Lot variations for robust device.
