2SA1742 Datasheet, Transistors, Inchange Semiconductor

2SA1742 Features

  • Transistors a high hFE at low VCE(sat),which is ideal for use as a driver in DC/DC converters and actuators. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base

PDF File Details

Part number:

2SA1742

Manufacturer:

Inchange Semiconductor

File Size:

196.37kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistors.

  • Collector-Emitter Sustaining Voltage- : VCEO= -60V(Min)
  • High DC Current Gain- : hFE= 100(Min)@ (VCE= -2V , IC= -1A)

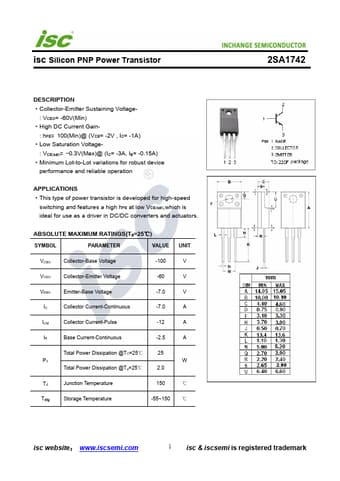

  • Datasheet Preview: 2SA1742 📥 Download PDF (196.37kb)
    Page 2 of 2SA1742 Page 3 of 2SA1742

    2SA1742 Application

    • Applications
    • This type of power transistor is developed for high-speed switching and features a high hFE at low VCE(sat),which is ideal for
