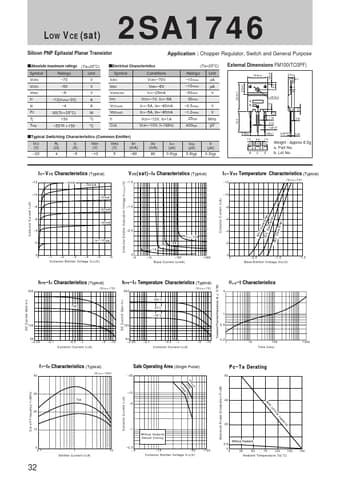

2SA1746 LOW VCE (sat)
Silicon PNP Epitaxial Planar Transistor
Application : Chopper Regulator, Switch and General Purpose
sAbsolute maximum ratings (Ta=25°C)
Symbol
Ratings
Unit
VCBO
–70
V
VCEO
–50
V
VEBO
–6
V
IC
–12(Pulse–20)
A
IB
–4
A
PC
60(Tc=25°C)
W
Tj
150
°C
Tstg
–55 to +150
°C
sElectrical Characteristics
Symbol
Conditions
ICBO
VCB=–70V
IEBO V(BR)CEO
VEB=–6V IC=–25mA
hFE
VCE=–1V, IC=–5A
VCE(sat)
IC=–5A, IB=–80mA
VBE(sat)
IC=–5A, IB=–80mA
fT
VCE=–12V, IE=1A
COB
VCB=–10V, f=1MHz
(Ta=25°C)
Ratings Unit
–10max
µA
–10max
µA
–50min
V
50min
–0.5max
V
–1.
