2SA1741 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SA1741

Datasheet Details

Part number 2SA1741
Manufacturer SavantIC
File Size 284.97 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1741 Datasheet
Additional preview pages of the 2SA1741 datasheet.

Product details

Description

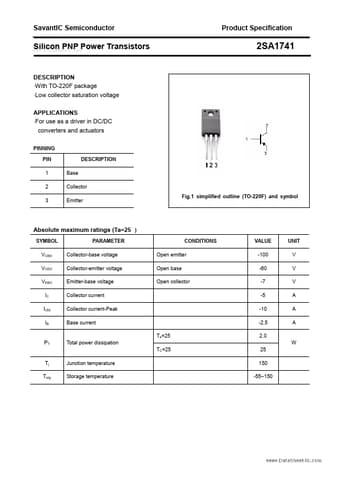

With TO-220F package Low collector saturation voltage APPLICATIONS For use as a driver in DC/DC converters and actuators PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-Peak Base current Ta=25 PT Total power dissipation TC=25 Tj Tstg Junction temperat
