2SA1718 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

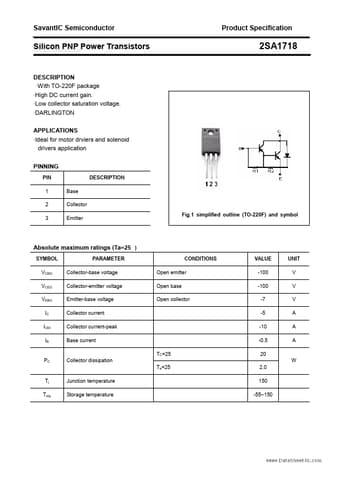

Datasheet preview – 2SA1718

Datasheet Details

Part number 2SA1718
Manufacturer SavantIC
File Size 235.12 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1718 Datasheet
Additional preview pages of the 2SA1718 datasheet.

Product details

Description

With TO-220F package High DC current gain. Low collector saturation voltage. DARLINGTON APPLICATIONS Ideal for motor drviers and solenoid drivers application PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current TC=25 PC Collecto
