2SA1714 Datasheet, Transistor, NEC

2SA1714 Features

  • Transistor
  • High DC current amplifiers due to darlington connection
  • Large current capacitance and low VCE(sat)
  • TO-126 power transistor with high power dissipation

PDF File Details

Part number:

2SA1714

Manufacturer:

NEC

File Size:

141.45kb

Download:

📄 Datasheet

Description:

Pnp silicon epitaxial power transistor. of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product

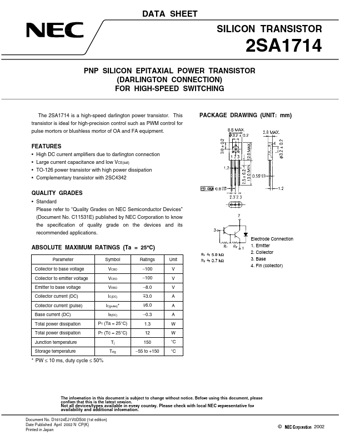

Datasheet Preview: 2SA1714 📥 Download PDF (141.45kb)
Page 2 of 2SA1714 Page 3 of 2SA1714

2SA1714 Application

  • Applications Electrode Connection 1. Emitter 2. Collector 3. Base 4. Fin (collector) ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to b
