DATA SHEET SILICON POWER TRANSISTOR 2SA1743 PNP SILICON EPITAXIAL TRANSISTOR FOR HIGH-SPEED SWITCHING The 2SA1743 is a power transistor developed f.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

2SA1743 Features

* a high hFE at low VCE(sat). This transistor is ideal for use as a driver in DC/DC converters and actuators. In addition, a small resin-molded insulation type package contributes to high-density mounting and reduction of mounting cost. PACKAGE DRAWING (UNIT: mm) FEATURES
* High hFE and low

2SA1743 Applications

* ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Collector current (pulse) Base current (DC) Total power dissipation Total power dissipation Junction temperature Storage temperature Symbol VCBO VCEO

📥 Download Datasheet

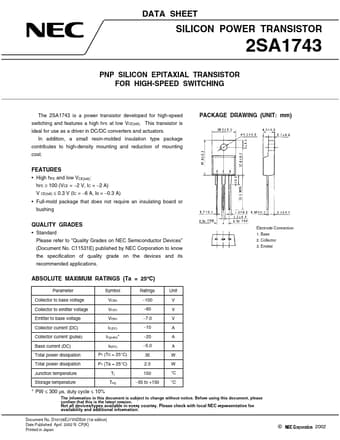

Preview of 2SA1743 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1743
Manufacturer
NEC
File Size
190.06 KB
Datasheet
2SA1743_NEC.pdf
Description
PNP Silicon Transistor
