2SA1749 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1749 Description

Ordering number:EN3643 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1749/2SC4564 High-Definition CRT Display Video Output Applications .

2SA1749 Features

* High fT : fT=400MHz (typ).
* High breakdown voltage : VCEO≥200V min.
* High current.
* Small reverse transfer capacitance and excellent high frequnecy chacateristics : Cre=3.4pF (NPN) , 4.2pF (PNP).
* Complementary 2SA1749 and 2SC4564 types.
* Adoption of FBET process. Pac

📥 Download Datasheet

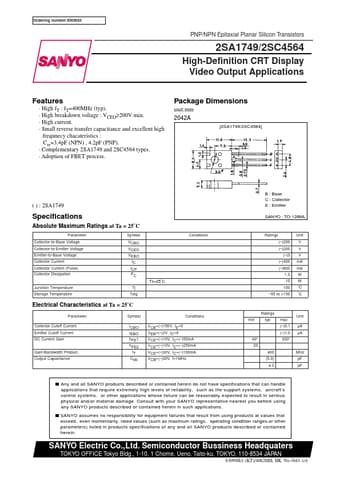

Preview of 2SA1749 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1749
Manufacturer
Sanyo Semicon Device
File Size
126.70 KB
Datasheet
2SA1749_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
