2SA1880 Power Transistor

2SA1880 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SA1880 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -80(V)(Min. Low Collector Saturation Voltage :VCE(sat)= -0. Large.

2SA1880 Applications

* Designed for use as a driver in DC/DC converters and actuators. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -10 A ICM Colle

📥 Download Datasheet

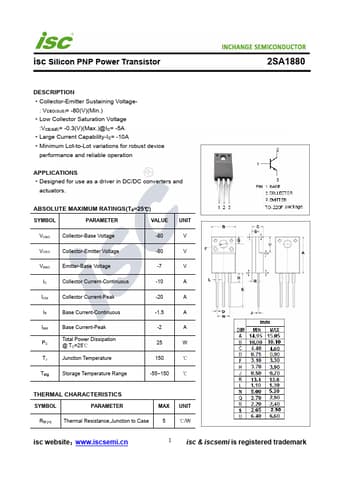

Preview of 2SA1880 PDF
datasheet Preview Page 2 datasheet Preview Page 3
